Avalon Harmonics MiX (Built Module)
€70,00
Sale price
€70,00
Regular price
Skip to product information
Avalon Harmonics MiX (Built Module)
€70,00
Sale price
€70,00
Regular price
Taxes included.
Shipping calculated at checkout.
NOTE: Listing price does not include any tariffs or customs costs. You are responsible for all additional costs that may incur during import. Some US postal codes may charge higher for shipping than expected. In these cases, I will send you a private message on Etsy and we will agree on how to proceed.
Compact three channel mono mixer.
This article is for the fully built Eurorack module.

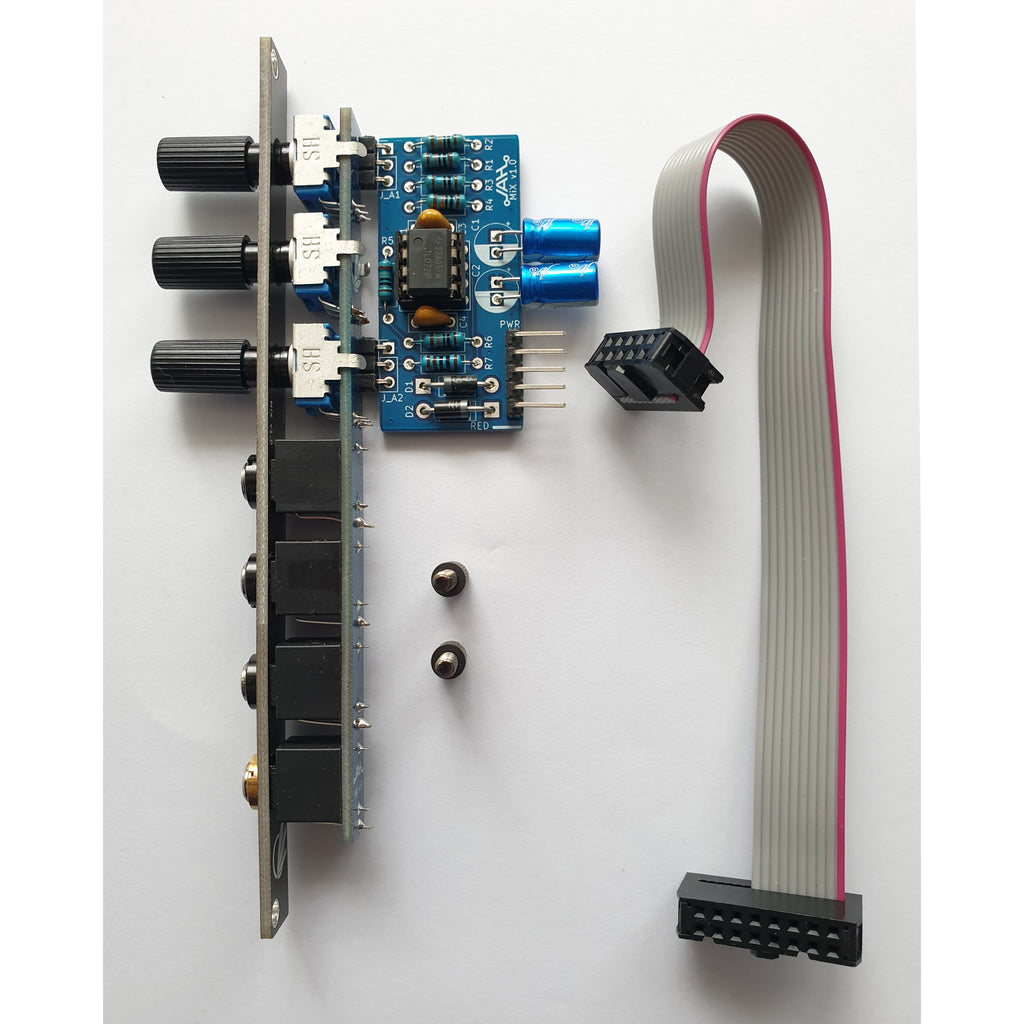

Includes:
1x Avalon Harmonics MiX Module
1x 15cm Eurorack Power Cable
2x 3mm Knurlies
Built and tested by Thorinair.

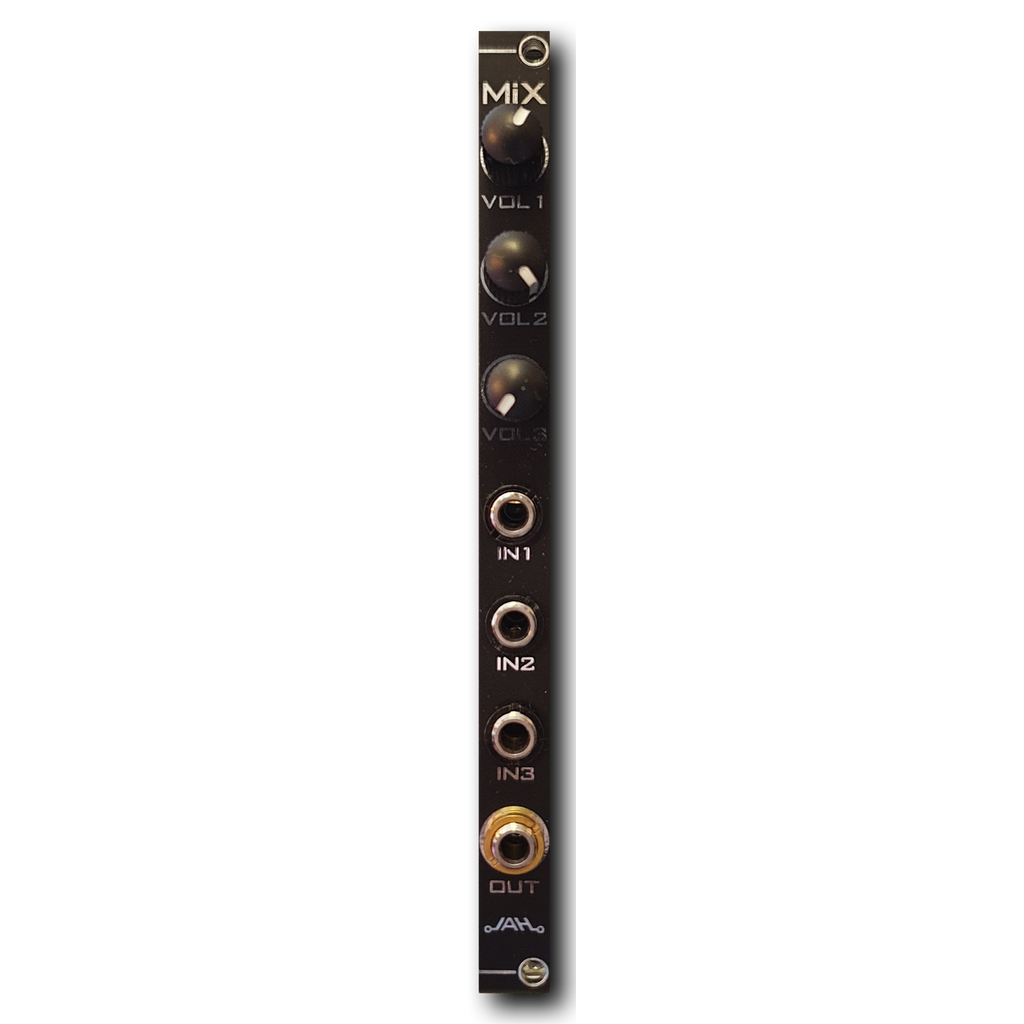

MiX is a simple three channel mono mixer with a focus on compactness. Measuring only 2 HP, it can easily fit somewhere in the rack where there is leftover unused space.
The mixer features 3 inputs and a single output. Each input has a volume/attenuation knob. Due to the circuit's simplicity, the mixer can be used both for audio and CV signals.
Website Page: https://avalon-harmonics.com/module/MiX/
ModularGrid Page: https://modulargrid.net/e/avalon-harmonics-mix
GitHub BOM & Source: https://github.com/Thorinair/Avalon-Harmonics/tree/master/Modules/MiX
Features:
- Slim 2 HP design
- 3 inputs with volume knobs for each
- Low power use
- Wrong polarity protection
- Size: 2HP
- Depth: 54mm
- Power: +12V: 4mA, -12V: 4mA
